Vibration Data Center Download Data Sheet: Individual Suspensions

Retrofit Seismic Data Center Suspensions designed to minimize effect of Earthquarkes in IT devices in existing Data Centers. Installed under existing or new racks, useful for Isolate in Legacy and New Development Data Centers against Earthquakes. Following the ASHRAE T.C. 9.9. STRUCTURAL AND VIBRATION GUIDELINES FOR DATACOM EQUIPMENT CENTERS.

Installation on live Data Centers by our trained team upon request.

Patented Solution designed for Data Center Isolation:

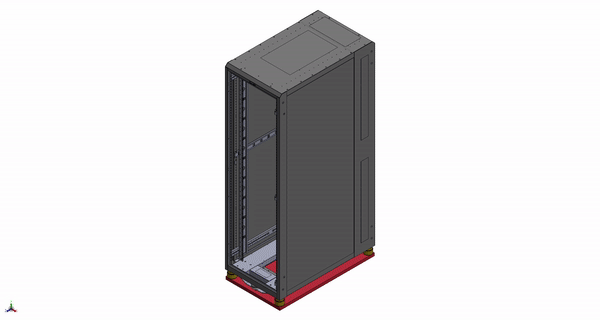

Individual SuspensionRetrofit Seismic Data Center individual suspensions: PROPERTIES

  • Innovative design manufactured with a heavy duty spring element supplemented with 100% stainless steel energy absorbers
  • Design totally metallic according Data Centers FIRE protection standards.
  • Triple Vibration Isolation:
  1. Compression Damping at a very low frequency: 4.5 Hz at nominal load
  2. Tension central unit to avoid rack movement
  3. Incorporation of safety dampers for overload up to 10 times the nominal load
  • 99% Vibration absorption between 100 Kg and 1,500 Kg from 50 Hz
  • Limited lateral displacement and ring 100% stainless steel lateral energy absorber
  • Total level of the rack once installed
  • Noncorrosive
  • Dielectric nonconductive to avoid currents leakages
  • Different dock adaptors to fix to the rack depending of vendor and model
  • Easy fixing to any rack in the market
  • Very low resonance frequency during a wide range of loads supported
  • Top of the rack Wire Rope Tension System
  • Elastic Limit Calculations:

Vibration Data Center: DIMENSIONS

Individual Suspension



Reference



Nominal Load (Kg)

Natural Frecuency (Hz) Free height H (mm)

Metric Thread

Height under max. load  H’ (mm)


954900 – S1

250 kg

1,000 Kg/rack



4-6



64.5



M10 a M20*



50

* customized manufacture available UNC and BSW upon request
